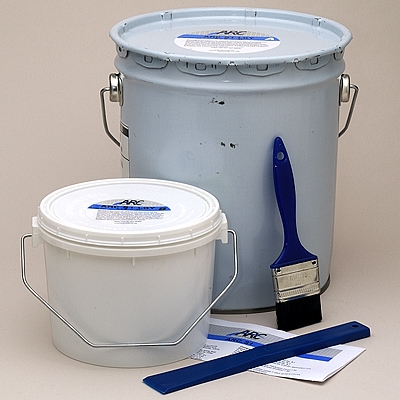

An advanced composite formulated to protect metal surfaces from  corrosion and chemical attack. ARC S1 is a low viscosity high performance composite lining that is designed  to be spray applied but may also be applied by roller or brush. ARC S1 yields excellent barrier properties for  long-term corrosion and chemical resistance in immersion exposures  when used in a multicoat application. It is normally applied at a thickness of 250  microns (10 mils) per coat.

TECHNICAL DATA

• Dry Temperature Dry (Min/Max)                                                    -20 F (-29C) to 175 F (80 C)
• Wet Temperature (Min/Max)                                                          -20 F (-29C) to 125 F (52 C)
• Compressive Strength - kg/cm2 - Mpa (psi)
• Flexural Strength - kg/cm2 - Mpa (psi)                                        420 -41 (6,000)
• Tensile Strength - kg/cm2/Mpa (psi)                                            240 - 23 (3,400)
• Tensile Adhesion - kg/cm2 - Mpa (psi)                                        Greater than 140 - 14 (2,000)
• Impact Resistance - nt m (in. lbs.)
• Water Vapor Permeability (meteric perm-cm - Perms)         .0002
• Salt Fog                                                                                                >10,000 hrs
• Shore D Hardness                                                                             85
